Link snippet example

When you click a TGML graphic that has a configured Link snippet, another TGML page is displayed. Typically, you would use link snippets to navigate between TGML pages.

This topic uses an example to illustrate how to configure a Link snippet.

Prerequisites:

This example uses a graphic file that already has a binded component or equipment in the workspace. For more information on how to prepare the TGML graphic snippet examples, see TGML snippet example prerequisites.

To create a Link snippet:

  1. In the left bottom corner, click Snippet, and then select Link.

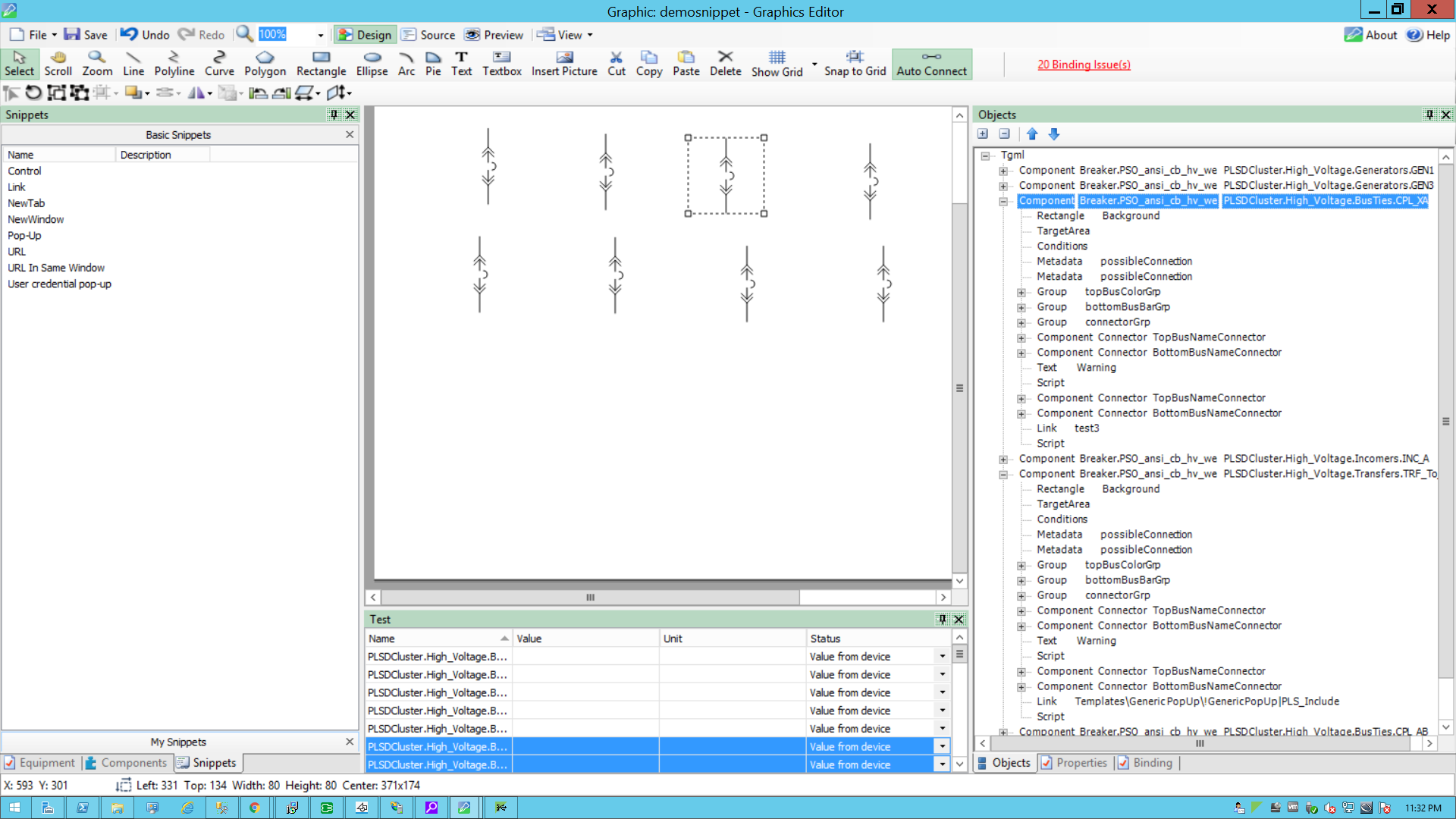

  2.  Drag and drop the Link snippet over the selected component in the workspace. For example:

  3. In the bottom right corner, click Objects, and then expand the TGML node.

    Two additional properties appear: Link and Script.

  4. Update the link with the TGML file to be opened. For example: test3

  5. Click Script.

  6. In the bottom right corner, click Properties, and then expand Behavior.
  7. Click the ellipsis button in OnMouseClick.


  8. Use the following script to set the TGML snippet's click behavior, and then close the script window:
    9. Copy
    function click(evt)
    {
    //componentName is name of the component based on the component selection we will fetch the component name
    var componentName = evt.getCurrentTarget().getAttribute("Name");

    //Collecting the links from the Component
    var Link = evt.getCurrentTarget().getElementsByTagName("Link");

    //customExpose-If two breakers are internally connected (means multi equipment);
    var customExpose = evt.getCurrentTarget().getAttribute("SubstituteNames");

    for (var i=0;i< Link.length;i++) {
    //LinkFileName : Extracting the file name from the Link
    var LinkFileName = Link.item(i).getAttribute("Name");

    //With invoke function you can configure the graphic component in Graphics Editor to open a linked target object in a target location when you perform a action(link) on the component
    invoke(LinkFileName, "Type = Link | ComponentName=" + componentName + " | CustomExpose=" + customExpose);
    }
    }

    function load(evt)
    {
    }
  9. Open the TGML graphic and click on the Component in the TGML.
  10. In the bottom right corner, click the Properties tab.

    Click on General > Name. The name visible in the Name field is a component name.

  11. Go to File > Save As > Project TGML.
  12. Enter a file name, and then click Save.



To view the snippet behavior:

  1. In a web browser, log into POWeb Applications (https://localhost/webhmi or https://ipaddress/webhmi).

    2. The Power Operation Web Applications Home page appears.

  2. Select the new TGML file from the Diagram Library.

  3. Click on the circuit breaker.

    The new link is opened:
